Palit NVIDIA GeForce RTX 5060 Infinity 3 OC 8GB GDDR7
KEY FEATURE
-
Compact 2-slot SFF design
-
Powered by NVIDIA Blackwell architecture
-
5th Gen Tensor Cores and 4th Gen Ray Tracing Cores
-
DLSS 4 and NVIDIA Reflex 2
-
Ideal for high-performance SFF builds
-
Copper Base and Composite Heat Pipes for advanced cooling
-
AV1 Encode/Decode support
KEY SPEC
| Specification | Details |
|---|---|
| GPU | NVIDIA GeForce RTX 5060 |
| CUDA Cores | 3840 |
| Memory | 8 GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Clock | 28 Gbps |
| Boost Clock | 2580 MHz |
| Base Clock | 2280 MHz |
| Memory Bandwidth | 448 GB/sec |
| Architecture | Blackwell |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| Bus Support | PCI Express 5.0 |
| DirectX / OpenGL | DX12 Ultimate / OpenGL 4.6 |
| Max Digital Resolution | 4K@480Hz / 8K@120Hz with DSC |

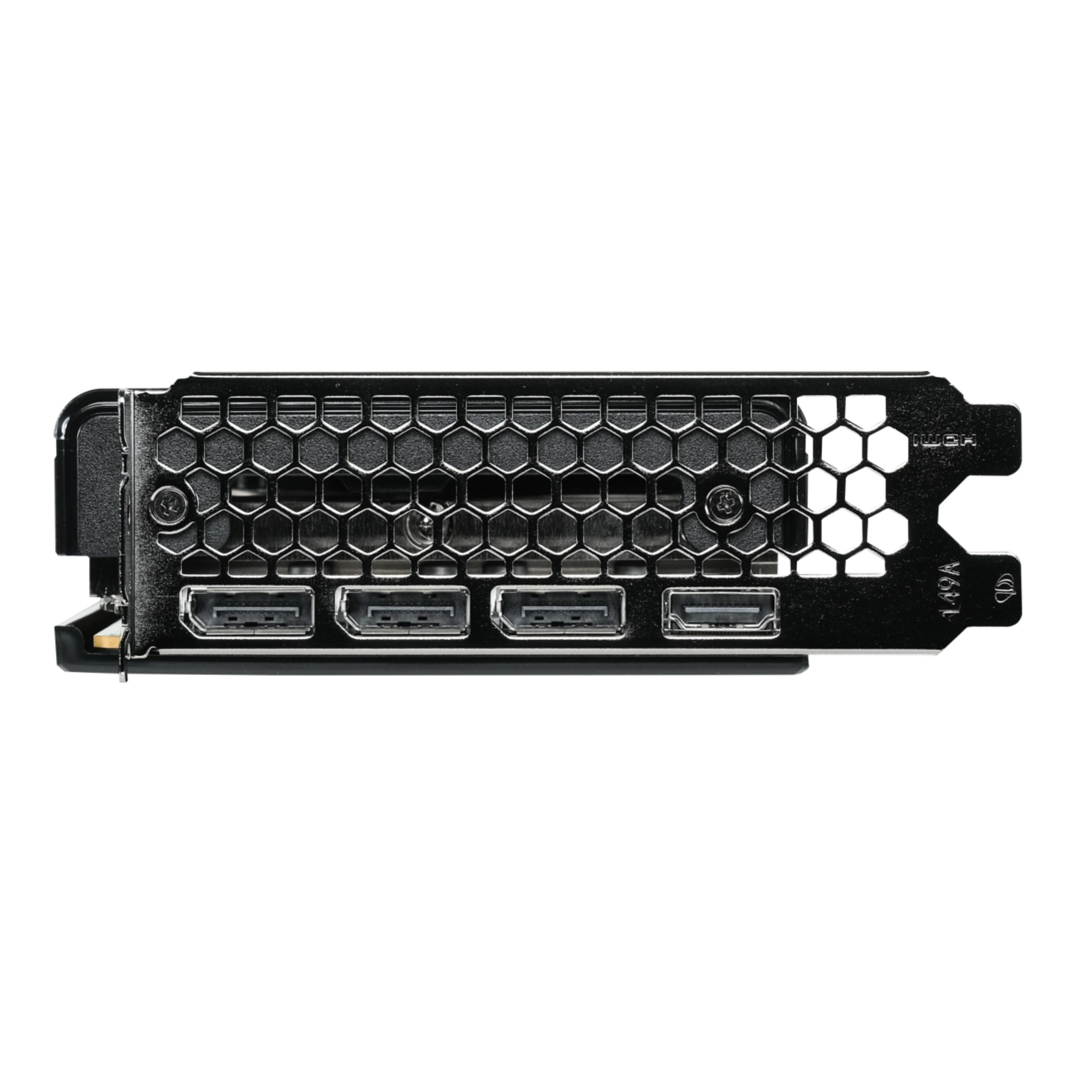

| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Multi Monitor | Up to 4 displays |
| Power Consumption | 155 W |
| Recommended PSU | 550 W |
| Power Connector | 1x 8-pin |
| Card Dimensions | 291.9 x 116.6 x 41.3 mm |
| Slot Size | 2 Slot |
| Cooling | Composite Heat Pipe, Copper Base |
| Encoder / Decoder | 1x 9th Gen NVENC / 1x 6th Gen NVDEC |
IN THE BOX
-
Graphics Card
-
User Manual
