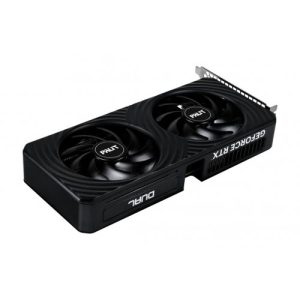

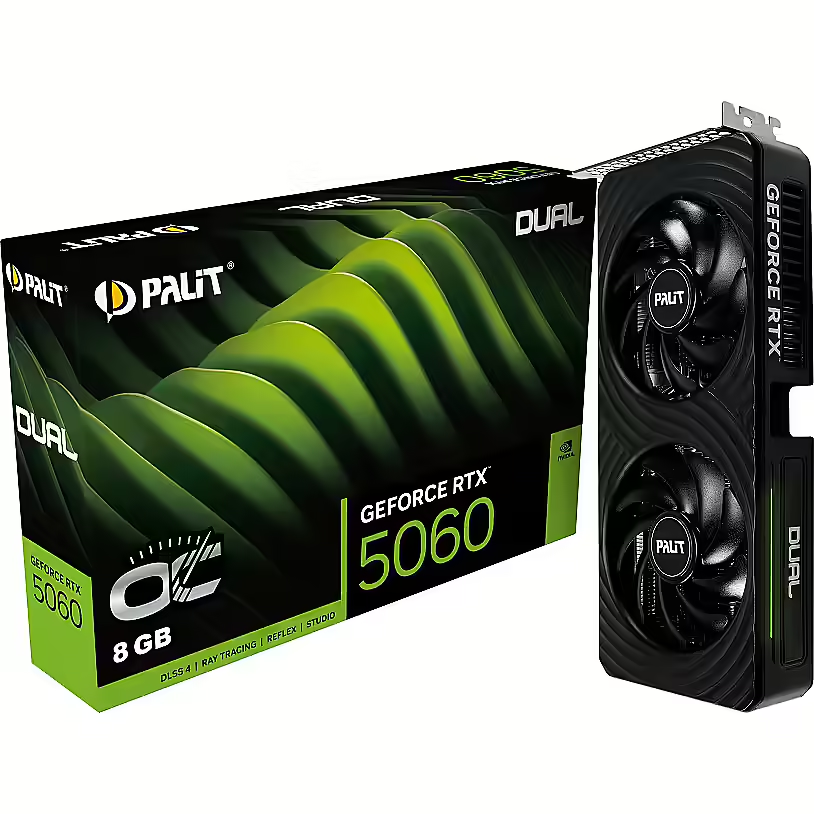

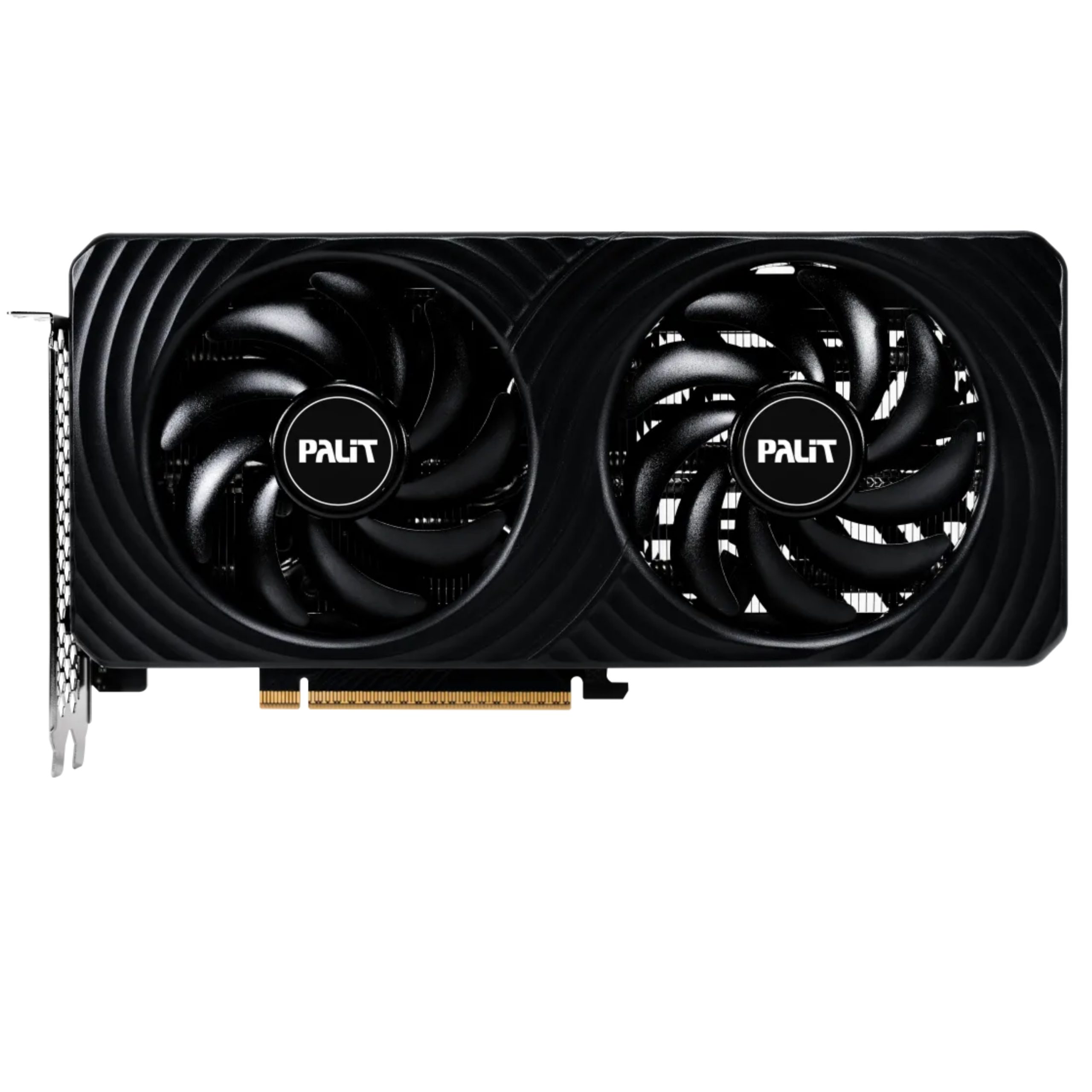

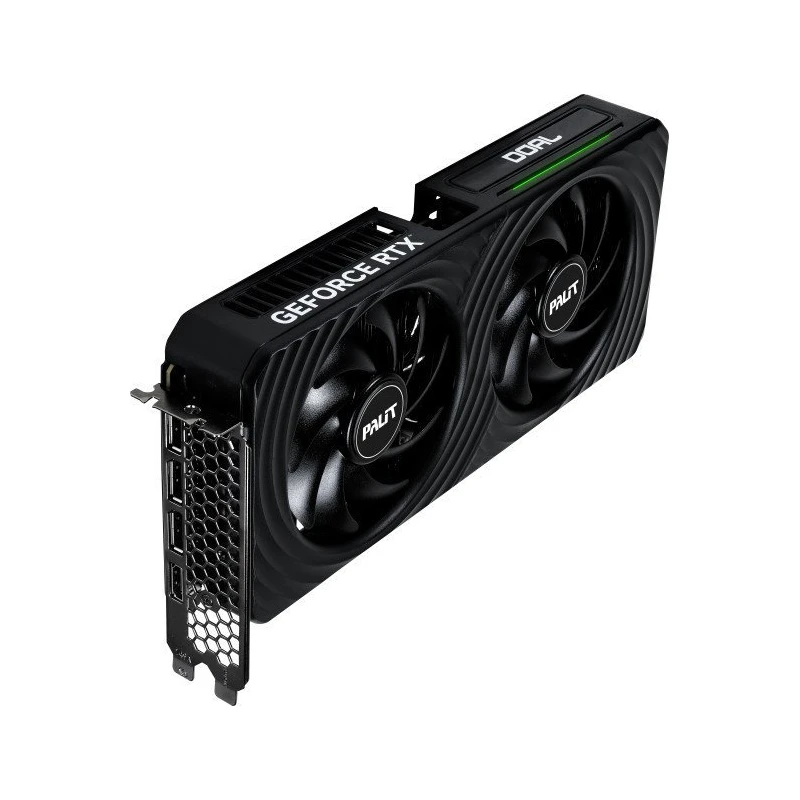

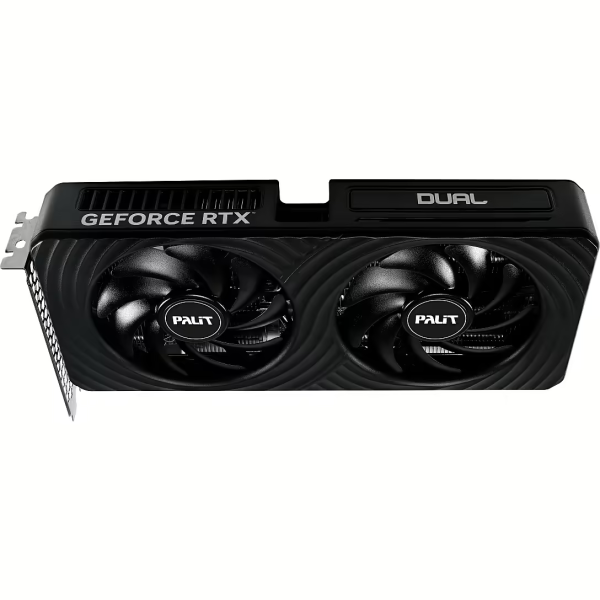

Palit NVIDIA GeForce RTX 5060 Dual OC 8GB GDDR7
Key Features
-
Dual 95mm fans for optimal cooling and quiet operation
-
Sleek black design with subtle RGB lighting
-
Compact 2-slot form factor for small builds
-
Customizable shroud with Palit Maker support
-
Reinforced backplate for structural durability
-
Powered by NVIDIA Blackwell architecture
-
DLSS 4, Reflex 2, ACE & Broadcast AI features
-
0-dB Tech with copper base and composite heat pipes
Key Spec
Specification | Details |
---|---|
Memory Amount | 8 GB GDDR7 |
Memory Interface | 128-bit |
Graphics Clock | 2280 MHz |
Boost Clock | 2535 MHz |
Memory Clock | 28 Gbps |
CUDA Cores | 3840 |
Memory Bandwidth | 448 GB/sec |
Max Resolution | 4K @ 480Hz / 8K @ 120Hz (DSC) |
Bus Support | PCI Express 5.0 |
DirectX / OpenGL | DirectX 12 Ultimate / OpenGL 4.6 |

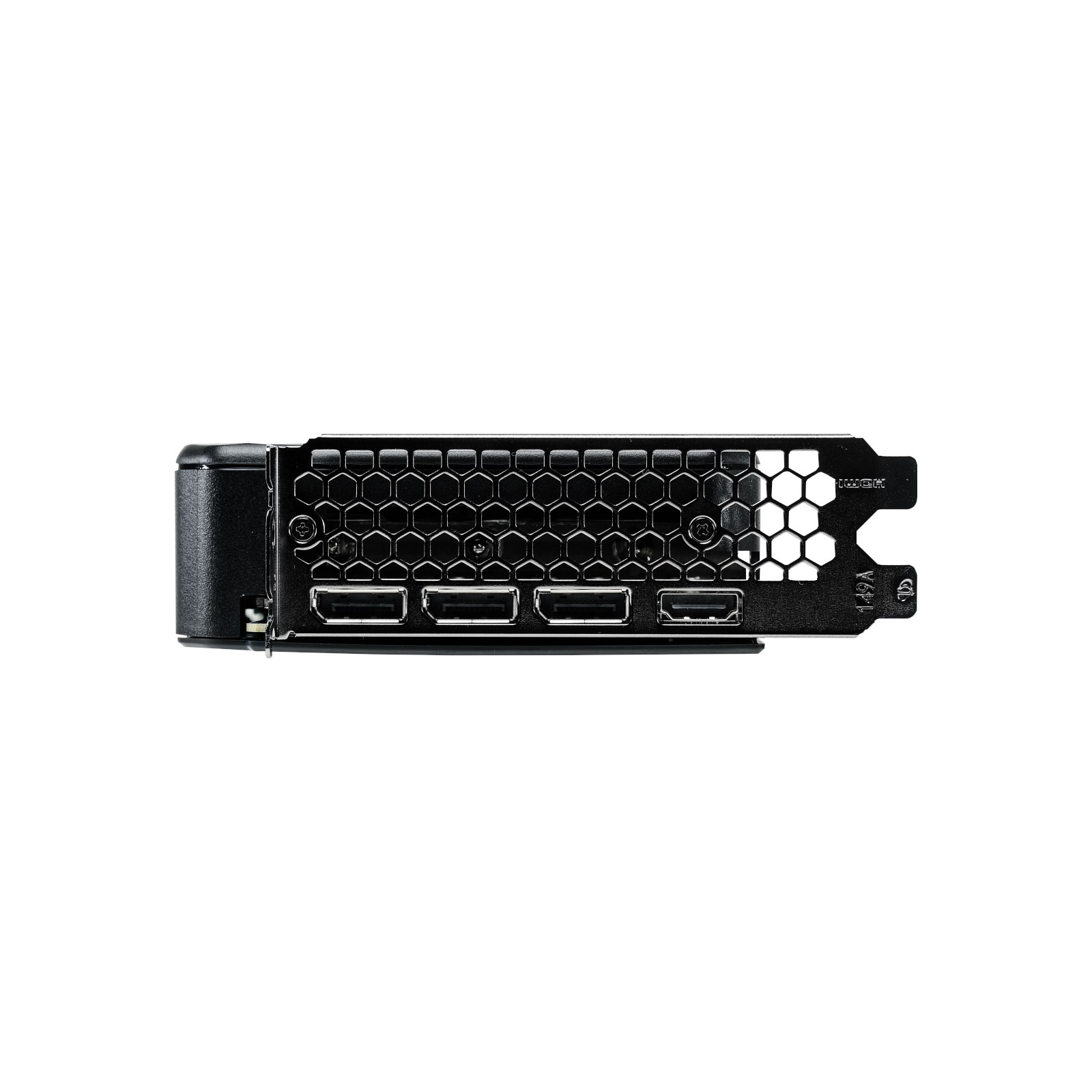

Ports | 1x HDMI 2.1b, 3x DisplayPort 2.1b |
Board Size | 262.1 x 126.3 x 40.1 mm |
Slot Height | 2 Slot |
Graphics Card Power | 145 W |
Recommended System Power | 550 W |
Power Connector | 1x 8-pin |
RGB Lighting | Yes |
Encoder / Decoder | NVENC 9th Gen / NVDEC 6th Gen |
AV1 Encode / Decode | Yes / Yes |
VR Ready / Multi Monitor | Yes / Up to 4 Displays |
