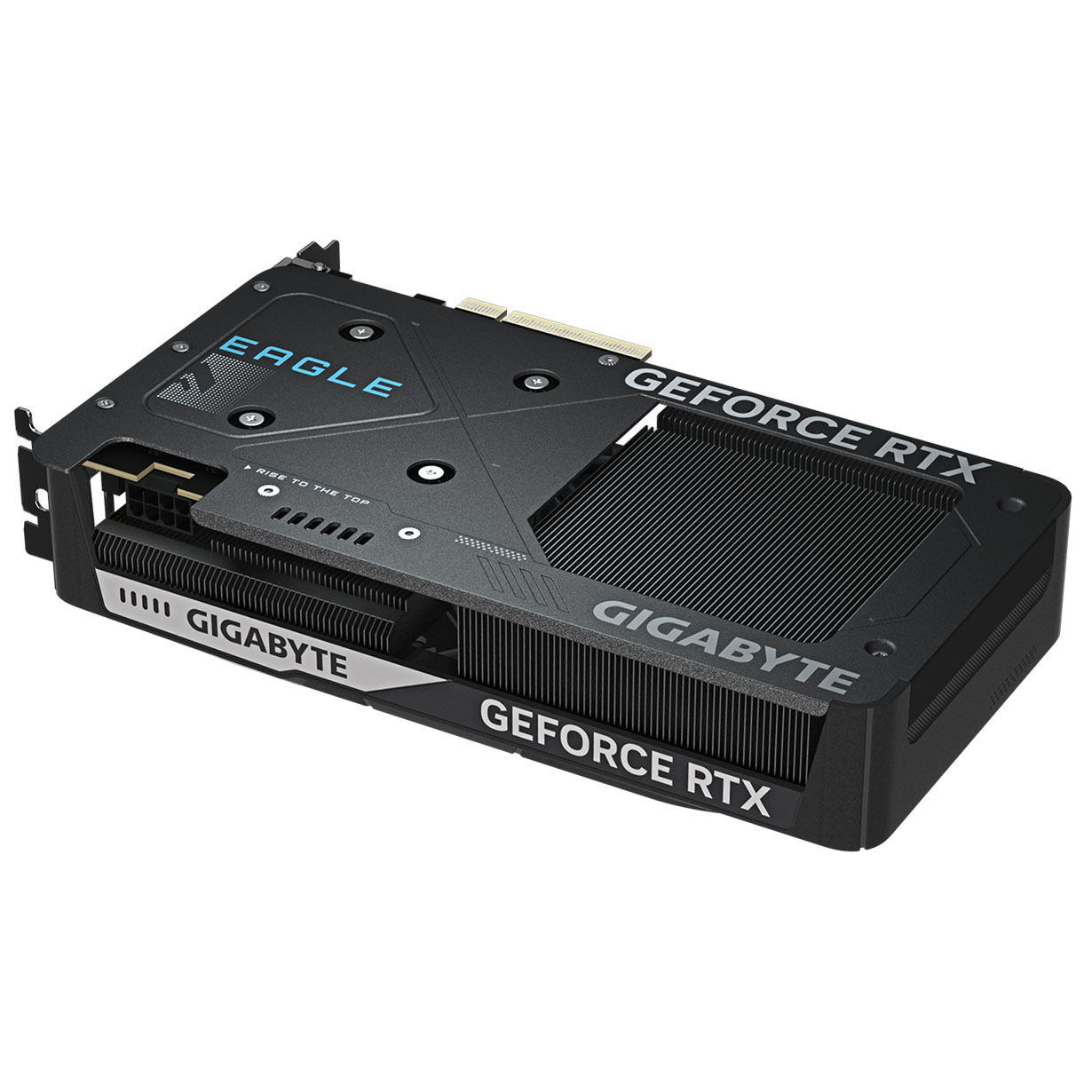

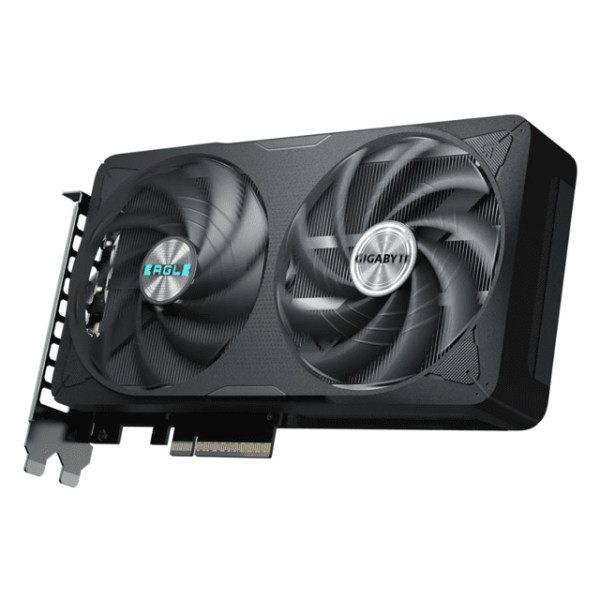

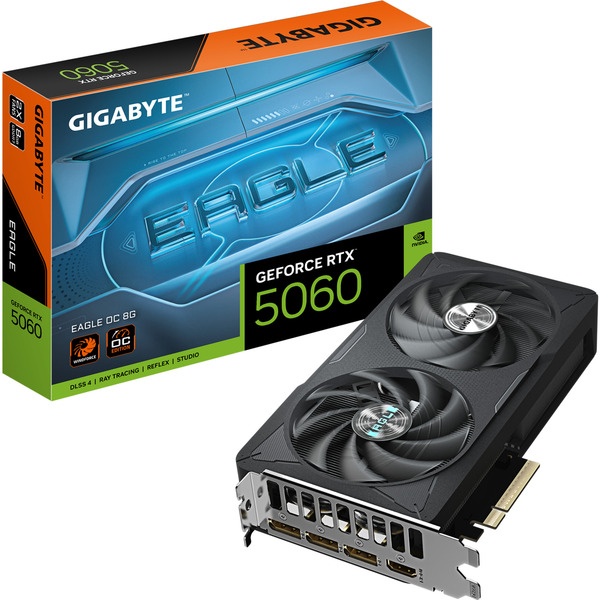

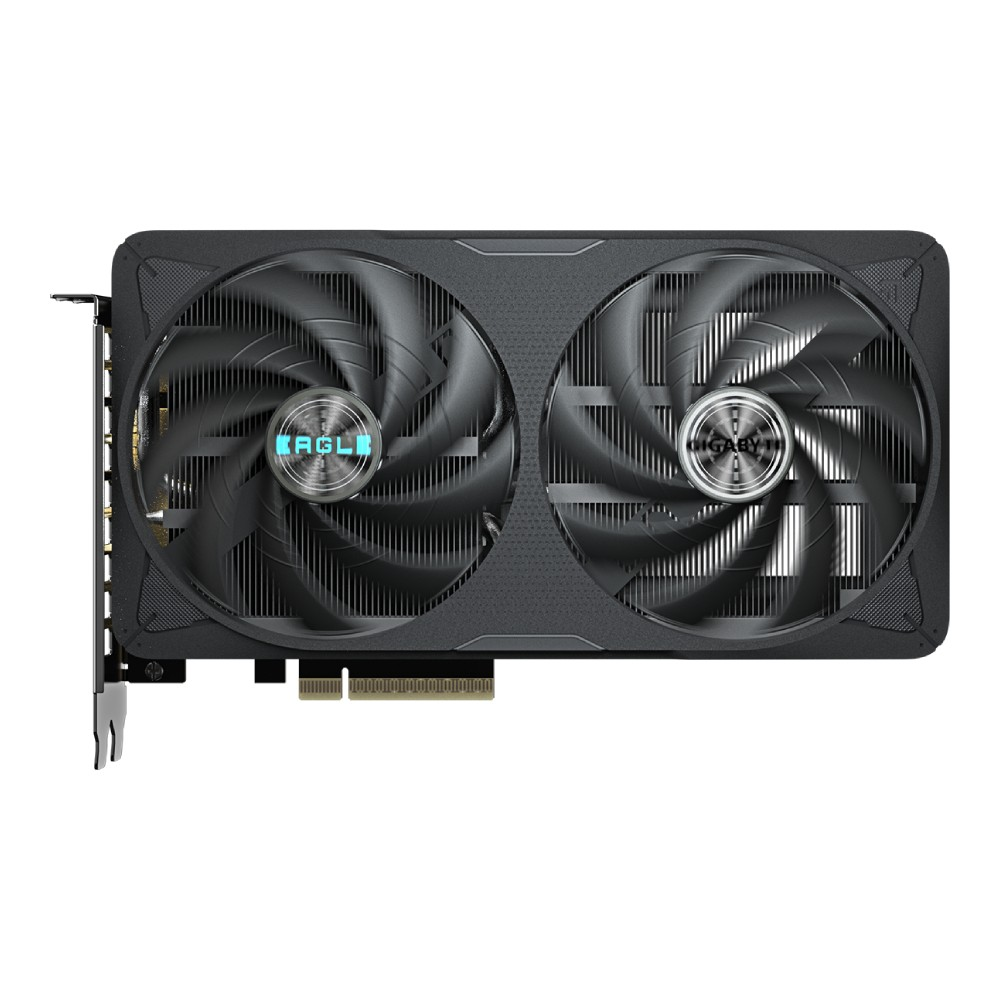

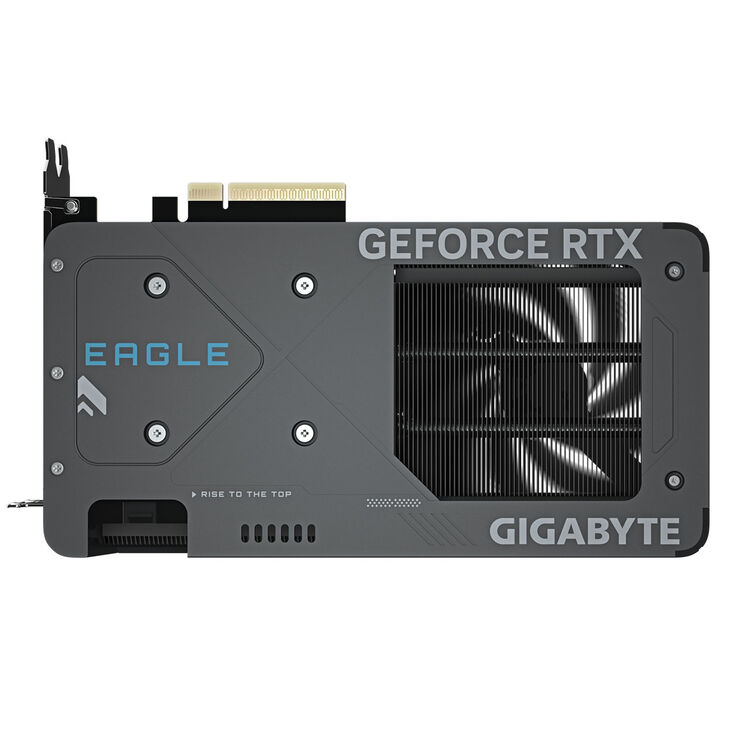

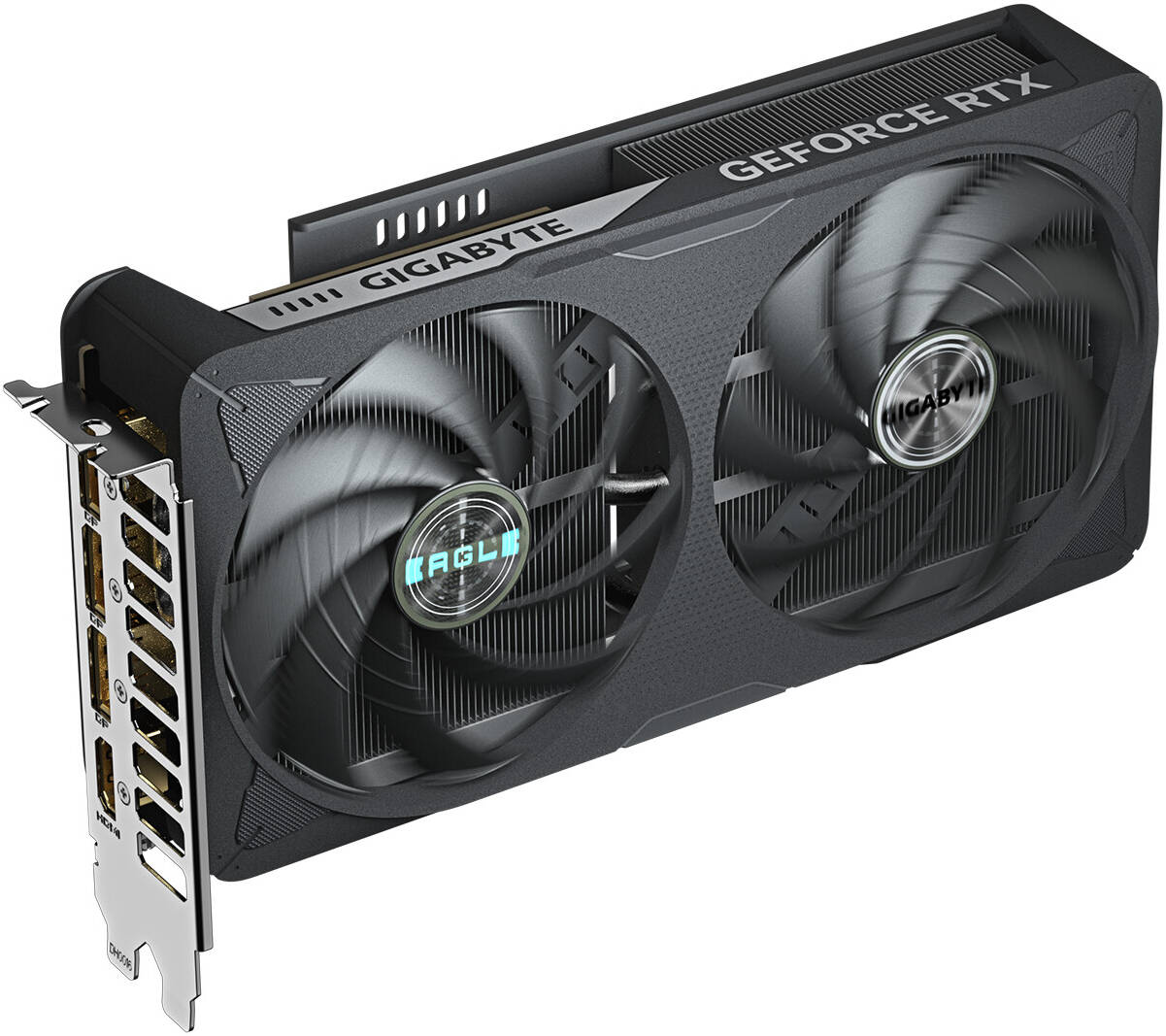

Gigabyte NVIDIA GeForce RTX 5060 EAGLE OC 8GB GDDR7
Key Features
-
Powered by NVIDIA Blackwell architecture & DLSS 4
-
WINDFORCE cooling with Hawk fan
-
Server-grade thermal conductive gel
-
Reinforced structure for long-term durability
-
Compact ATX form for wider compatibility
-
AI-enhanced performance: DLSS 4, Reflex 2, ACE
-
Ideal for gaming, creative work, and 4K+ displays
Key Spec
Specification | Details |
---|---|
Graphics Processing | GeForce RTX™ 5060 |
Core Clock | 2550 MHz |
CUDA Cores | 3840 |
Memory Size | 8 GB |
Memory Type | GDDR7 |
Memory Clock | 28 Gbps |
Memory Bus | 128-bit |
Card Bus | PCI Express 5.0 |
Max Digital Resolution | 7680×4320 |
Multi-View Support | 4 Displays |
Card Size | 208 x 120 x 40 mm |
PCB Form | ATX |
DirectX / OpenGL | DirectX 12 / OpenGL 4.6 |
Recommended PSU | 550 W |
Power Connector | 1x 8-pin |
Output Ports | 1x HDMI 2.1b, 3x DisplayPort 2.1b |
Cooling System | WINDFORCE + Hawk Fan |
AI Features | DLSS 4, Reflex 2, ACE, Broadcast |
What’s in the box
-
Quick guide
