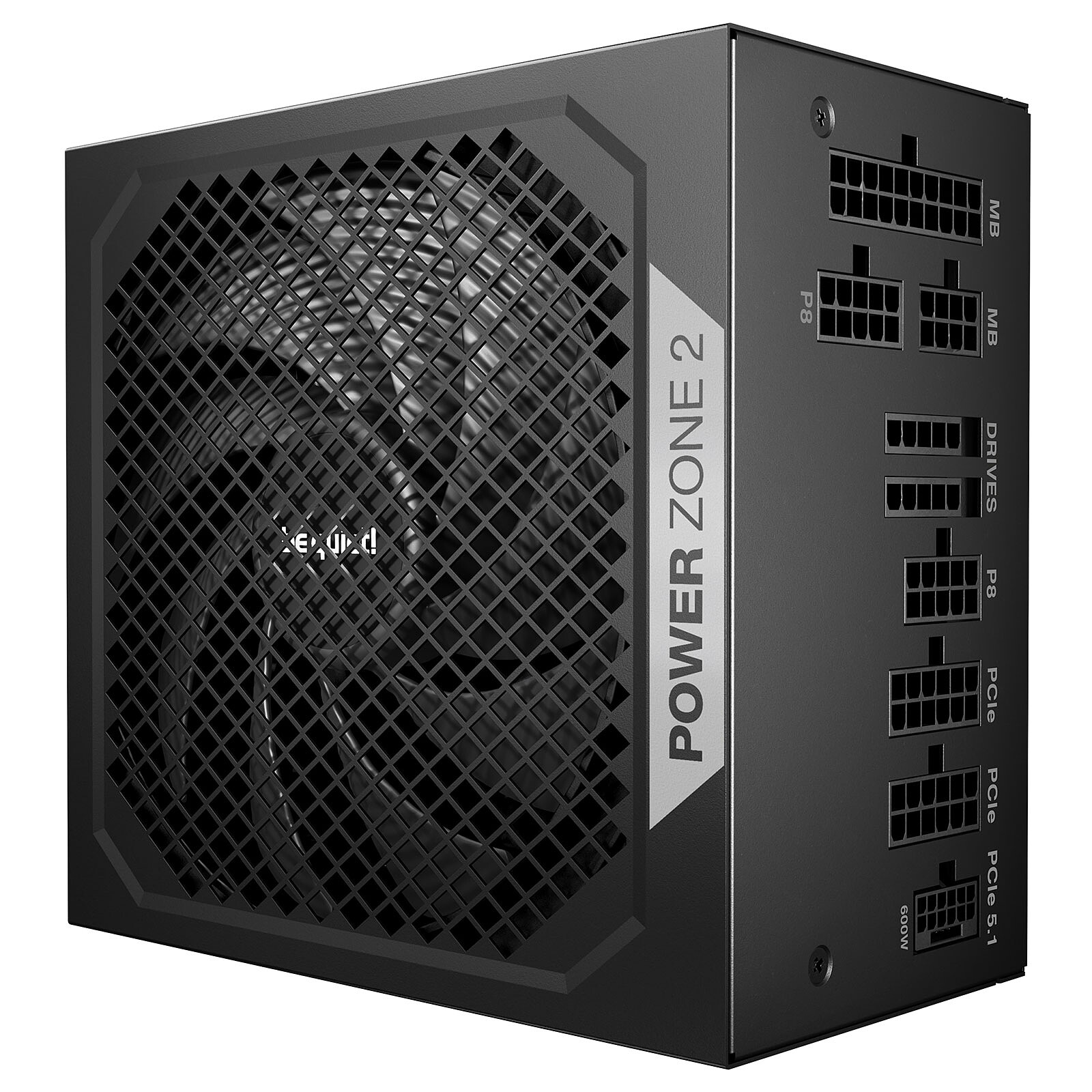

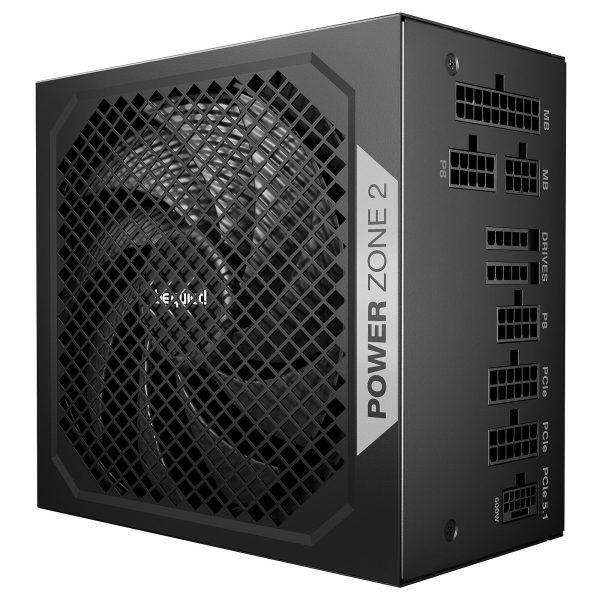

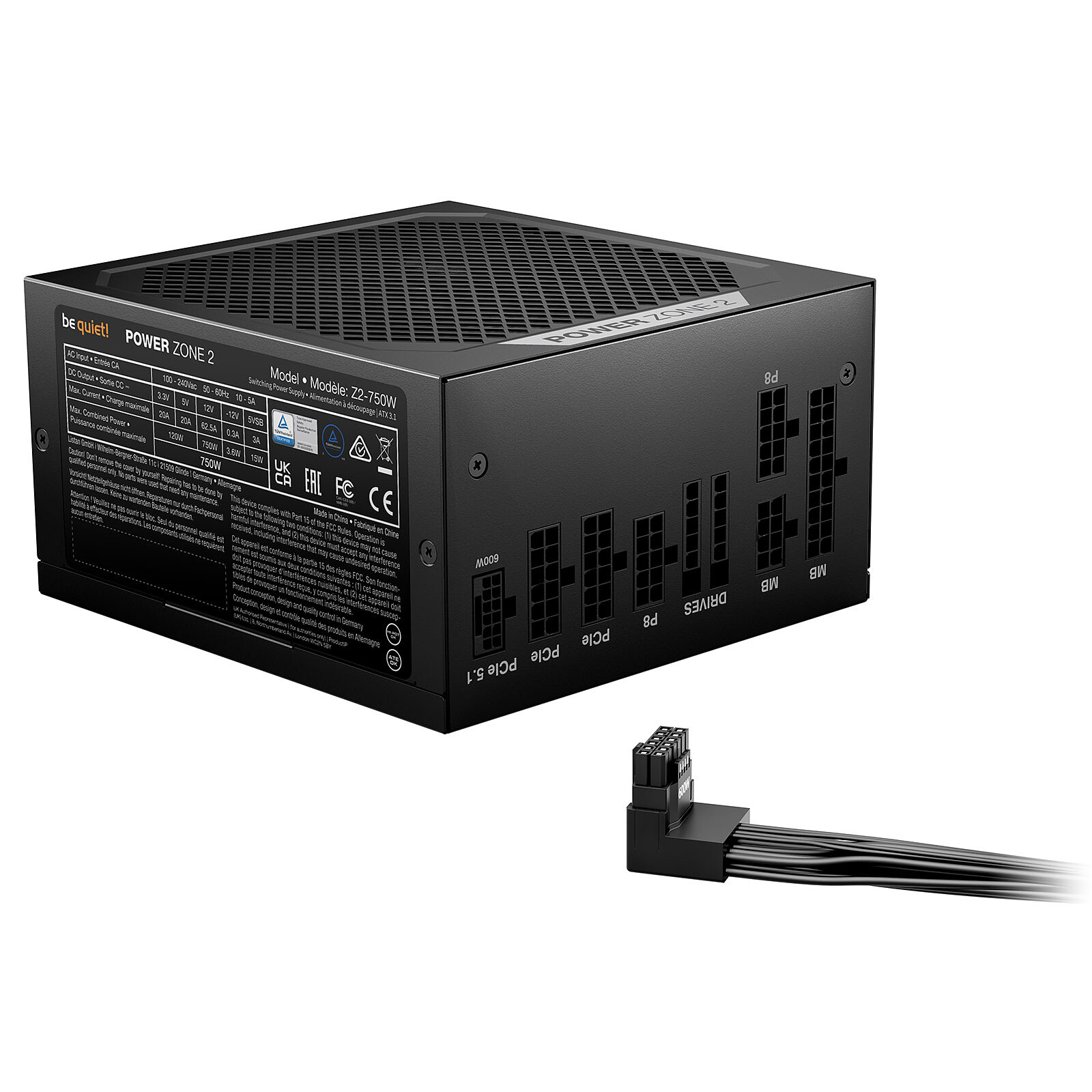

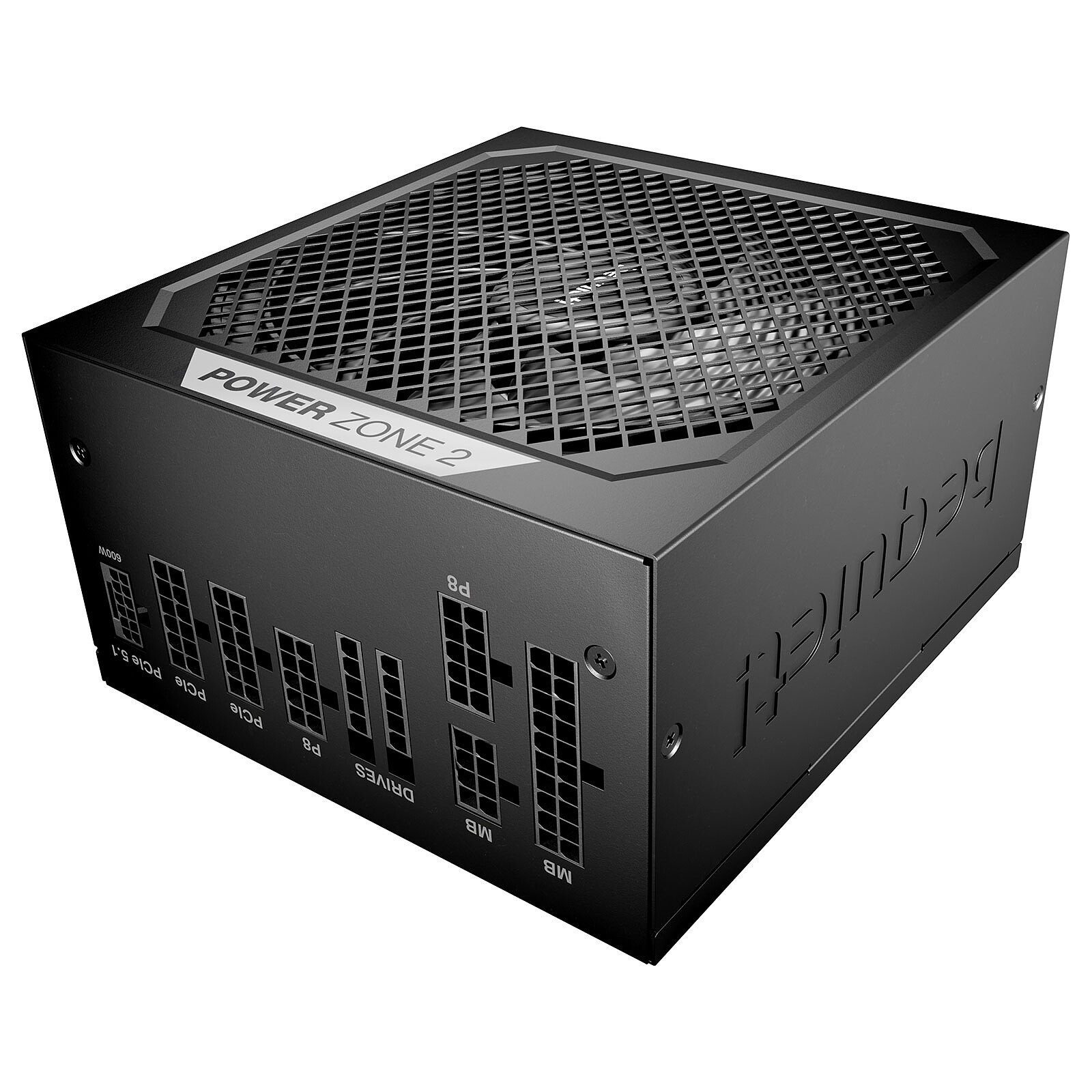

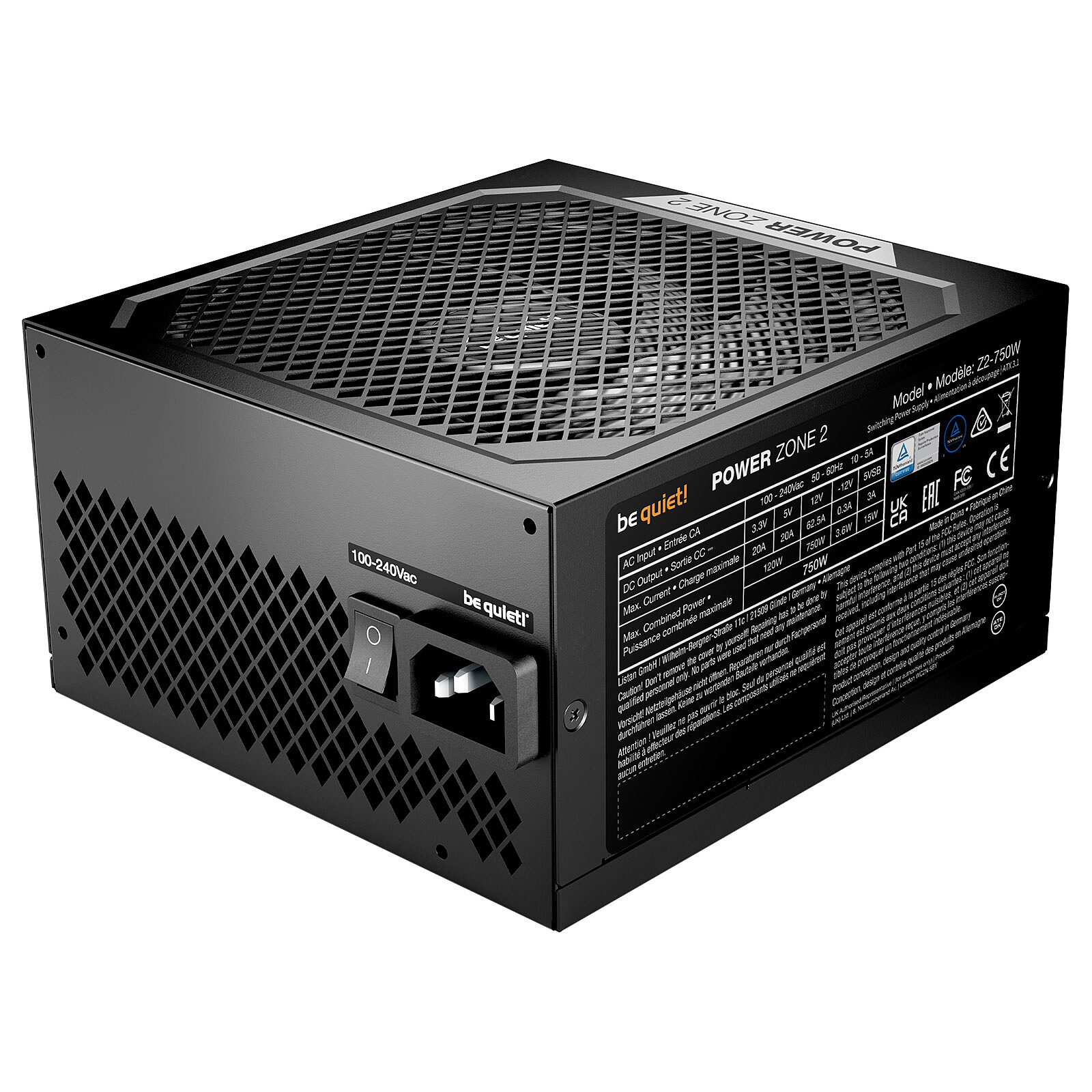

BE QUIET! POWER ZONE 2 750W / 80+ Platinum – Fully Modular PSU
KEY FEATURES
-
80 PLUS Platinum & Cybenetics Platinum certified – up to 94.2% efficiency
-
Semi-passive Zero-RPM cooling – fan stops under low load for silent operation
-
Pure Wings 3 140mm fan – optimized for quiet & efficient cooling
-
Post-ventilation – fan runs 2–5 min after shutdown to prevent frequent starts
-
ATX 3.1 & PCIe 5.1 ready – native 12V-2×6 (600W) connector for RTX 40 Series
-
Single high-performance 12V rail – stable power delivery & transient load support
-
LLC + SR + DC/DC topology – advanced voltage regulation & stability
-
Distinctive mesh design with printed cable labels – premium look & feel
-
Full protection suite: OVP / OPP / SCP / UVP / OCP / OTP / SIP
-
10-year manufacturer warranty
KEY SPEC
Specification | Details |
---|---|
Model | Power Zone 2 750W |
Form Factor | ATX 3.1 / EPS 12V 2.92 |
PFC | Active PFC (>0.98) |
AC Input | 100-240V / 10-5A |
Frequency | 50-60Hz |
Continuous Power | 750W |
Peak Power | 820W |
+12V Rail | 62.5A (Single Rail, 750W) |
Efficiency | 80 PLUS Platinum (94.2% max) |
Fan | Pure Wings 3 140mm, 1800 RPM (6.5 dBA @50% load) |
Dimensions | 160 x 150 x 86 mm |
Protections | OVP, UVP, OCP, SCP, OPP, OTP, SIP |
Warranty | 10 Years |
CONNECTORS & CABLES
-
ATX 20+4 Pin x1 (60cm)
-
CPU P4+4 Pin x1
-
CPU P8 Pin x1
-
CPU P4 Pin x1
-
PCIe 12V-2×6 (600W) x1
-
PCIe 6+2 Pin x3
-
SATA x6
-
PATA x1
BOX CONTENT
-

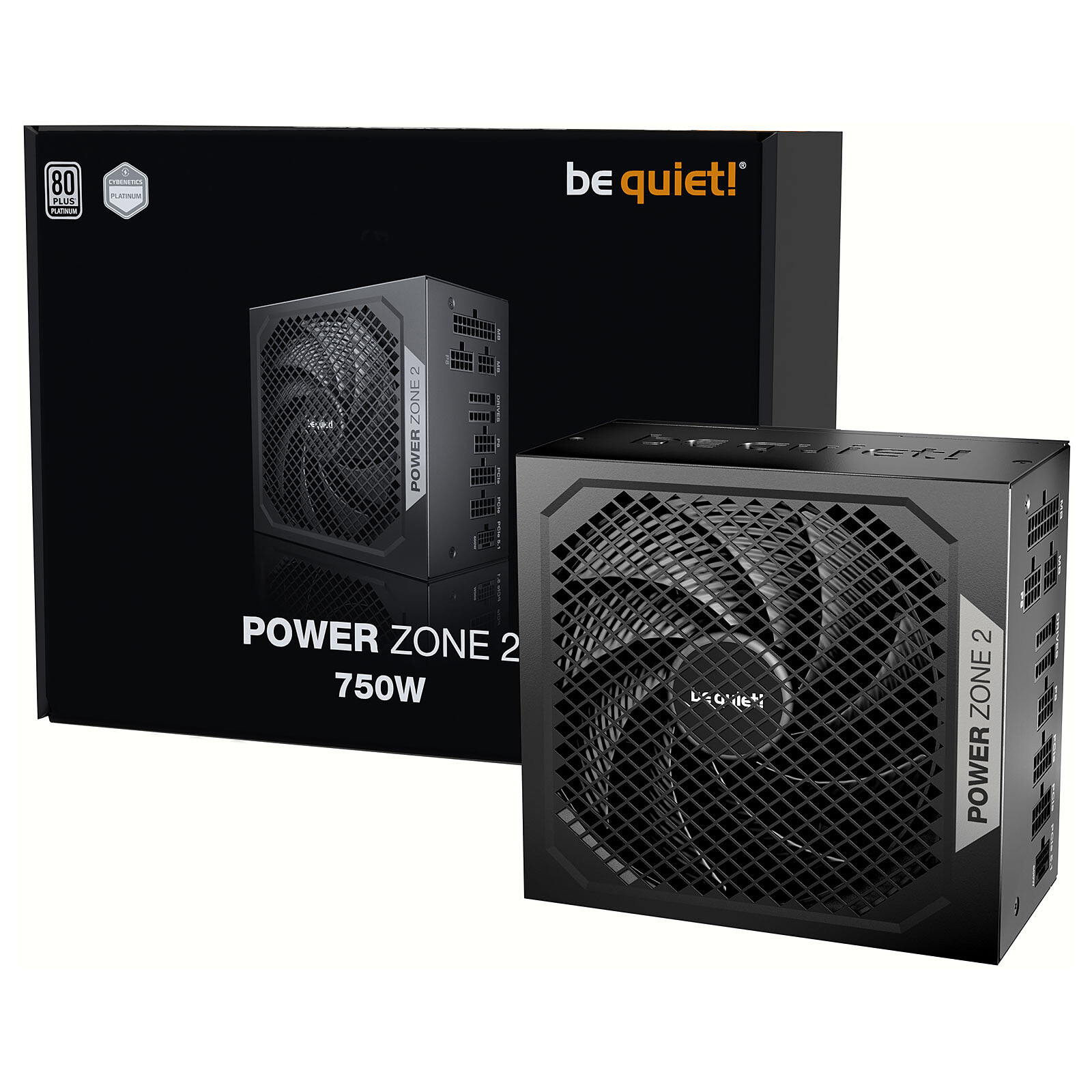

Be Quiet! Power Zone 2 750W PSU
-
Fully modular flat & sleeved cables
-
Screws & cable ties
-
User manual
