be quiet! Dark Power Pro 13 1600W – 80+ Titanium – Fully Modular PSU
KEY FEATURE
-
1600W continuous power, ATX 3.1, PCIe 5.1 ready (2x 12V-2×6 & 6x 6+2 pin connectors)
-
80 PLUS® Titanium efficiency (up to 94.5%)
-
Fully digital control for ultra-stable power delivery
-
Handles transient power excursions up to 200%
-
Overclocking key: switch between 6x 12V rails & single 12V rail
-
Frameless Silent Wings 135mm fan with fluid-dynamic bearing
-
Premium aluminum case & individually sleeved modular cables
-
Japanese 105°C capacitors for ultimate reliability
-
10-year manufacturer warranty
KEY SPEC
Specification | Details |
---|---|
Continuous Power | 1600W |
Peak Power | 1700W |
Efficiency | 80 PLUS Titanium (up to 94.5%) |
Form Factor | ATX 3.1 |
Topology | Full bridge + LLC + SR + DC/DC (Digital control) |
Voltage Range | 115 – 240V |
Operating Temperature | up to 50°C |
Fan | Silent Wings 135mm, FDB, 6-pole motor |
Noise Level | 9.5 dB(A) @10% load, 31.1 dB(A) max |
12V Rails | 6 (switchable to single rail) |
Overclocking Key | Yes |
Cable Management | Fully modular, individually sleeved |

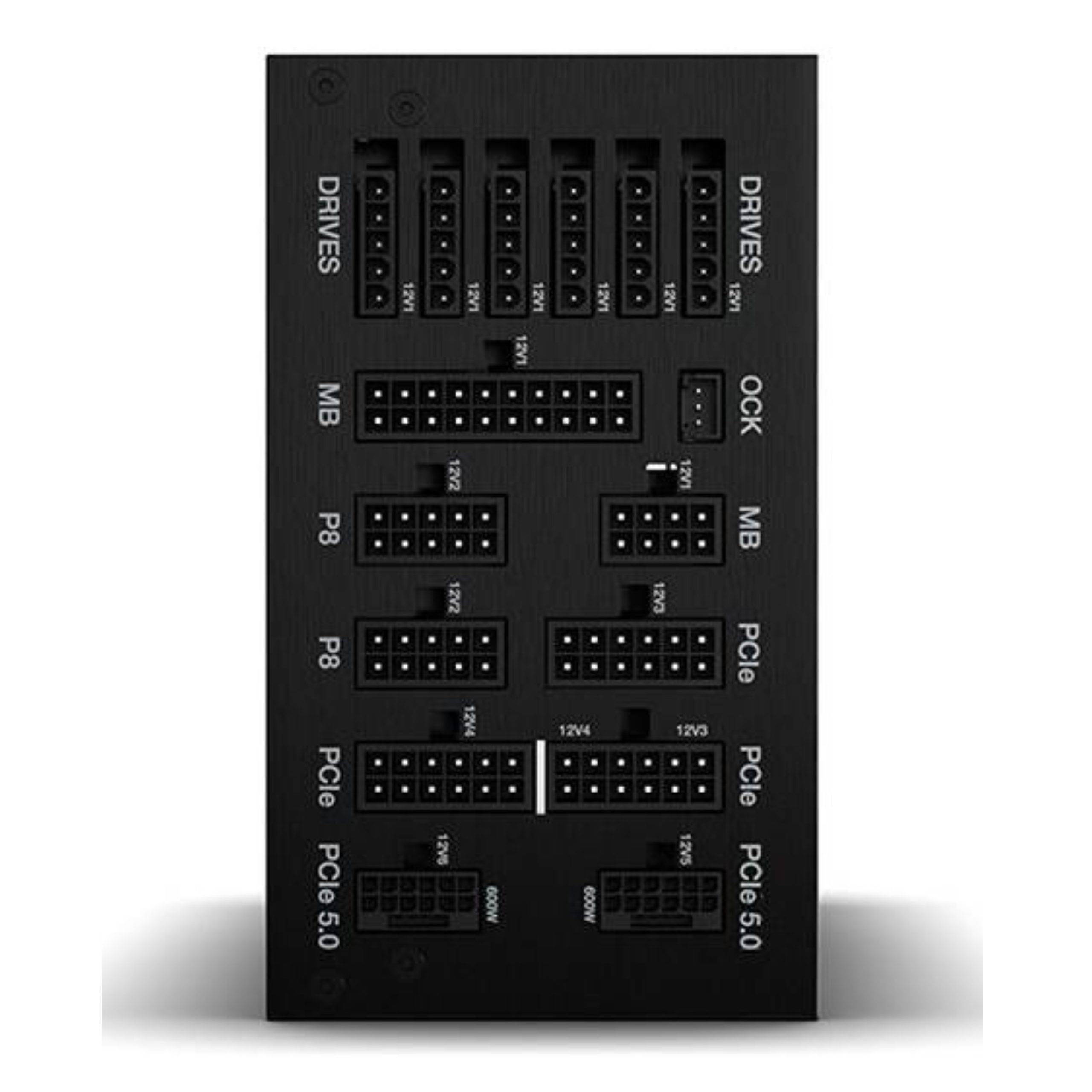

PCIe Connectors | 2x 12V-2×6, 6x PCIe 6+2-pin |
SATA | 16 |
PATA | 5 |
Protection | OCP, OVP, UVP, OPP, SCP, OTP, SIP |
Dimensions (LxWxH) | 200 x 150 x 86 mm |
Weight | 2.44 kg |
Warranty | 10 years |
PACKAGE CONTENT
-
Thumb screws
-
Screws
-
Cable ties
-
Velcro cable ties
-
OCK slot bracket with switch / OCK jumper
-
User manual (EN, DE, FR, ES, RU, JP, etc.)
